MTX 3.6/6kV, 6/10kV, 8.7/15kV XLPE Insulated, LSOH (SHF1) Sheathed, Armoured Flame Retardant MV Power Cables (Halogen Free Inner Covering)

Armoured Flame Retardant MV Power Cables

Application
These armoured MV cables are used on board of ships in all locations for fixed installations complying with IEC standards 60092-352. These cables are flame retardant, low smoke& halogen free.

Standards
 IEC 60092-350/351/354/359
 IEC 60332-1
 IEC 60332-3-22
 IEC 60754-1/2
 IEC 61034

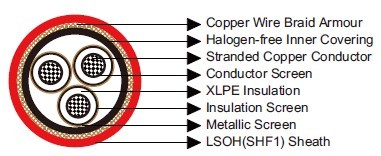

Construction
 Conductors: Class 2 stranded copper conductor.
 Conductor Screen: Semi-conducting layer (tape/compound).
 Insulation: XLPE.
 Insulation Screen: Semi-conducting layer (tape/compound).
 Metallic Screen: Copper tape
 Inner Covering: Halogen free compound.
 Armour: Copper wire braid.
 Outer Sheath: LSOH (SHF1). SHF2 can be offered upon request.

Core Identification
Coloured tape shall be inserted under metallic screen.
3core: Red, Yellow, Blue.

Mechanical and Thermal Properties
Bending Radius for Fixed Installations: 12×OD (single core); 9×OD (three core)
Temperature Range: -30℃ ～ +80℃

Dimensions and Weight
3.6/6kV

Part No.

Construction
No. of cores×Cross
section(mm²)

Nominal Insulation
Thickness mm

Nominal Sheath Thickness mm

Nominal Overall
Diameter mm

Nominal Weight kg/km

MTX-3.6/6KV-RMZ1-1C10

1×10

2.5

1.5

19.6

580

MTX-3.6/6KV-RMZ1-1C16

1×16

2.5

1.5

20.5

670

MTX-3.6/6KV-RMZ1-1C25

1×25

2.5

1.5

21.8

800

MTX-3.6/6KV-RMZ1-1C35

1×35

2.5

1.6

23.2

940

MTX-3.6/6KV-RMZ1-1C50

1×50

2.5

1.6

24.5

1100

MTX-3.6/6KV-RMZ1-1C70

1×70

2.5

1.7

26.5

1380

MTX-3.6/6KV-RMZ1-1C95

1×95

2.5

1.8

28.6

1700

MTX-3.6/6KV-RMZ1-1C120

1×120

2.5

1.9

30.4

2000

MTX-3.6/6KV-RMZ1-1C150

1×150

2.5

1.9

32.0

2320

MTX-3.6/6KV-RMZ1-1C185

1×185

2.5

2.0

34.4

2770

MTX-3.6/6KV-RMZ1-1C240

1×240

2.6

2.1

38.0

3530

MTX-3.6/6KV-RMZ1-1C300

1×300

2.8

2.3

41.2

4270

MTX-3.6/6KV-RMZ1-1C400

1×400

3.0

2.4

45.6

5410

MTX-3.6/6KV-RMZ1-1C500

1×500

3.2

2.5

48.9

6390

MTX-3.6/6KV-RMZ1-1C630

1×630

3.2

2.7

53.5

8030

MTX-3.6/6KV-RMZ1-3C10

3×10

2.5

2.0

35.4

1620

MTX-3.6/6KV-RMZ1-3C16

3×16

2.5

2.2

38.4

2030

MTX-3.6/6KV-RMZ1-3C25

3×25

2.5

2.3

41.4

2470

MTX-3.6/6KV-RMZ1-3C35

3×35

2.5

2.4

44.2

2930

MTX-3.6/6KV-RMZ1-3C50

3×50

2.5

2.5

47.6

3510

MTX-3.6/6KV-RMZ1-3C70

3×70

2.5

2.7

51.9

4390

MTX-3.6/6KV-RMZ1-3C95

3×95

2.5

2.8

56.6

5470

MTX-3.6/6KV-RMZ1-3C120

3×120

2.5

3.0

60.4

6450

MTX-3.6/6KV-RMZ1-3C150

3×150

2.5

3.1

64.1

7490

MTX-3.6/6KV-RMZ1-3C185

3×185

2.5

3.3

68.3

8850

MTX-3.6/6KV-RMZ1-3C240

3×240

2.6

3.5

75.4

11080

6/10kV

Part No.

Construction
No. of cores×Cross
section(mm²)

Nominal Insulation
Thickness mm

Nominal Sheath Thickness mm

Nominal Overall
Diameter mm

Nominal Weight kg/km

MTX-6/10KV-RMZ1-1C16

1×16

3.4

1.6

22.5

750

MTX-6/10KV-RMZ1-1C25

1×25

3.4

1.6

23.8

890

MTX-6/10KV-RMZ1-1C35

1×35

3.4

1.7

25.2

1040

MTX-6/10KV-RMZ1-1C50

1×50

3.4

1.7

26.5

1200

MTX-6/10KV-RMZ1-1C70

1×70

3.4

1.8

28.5

1480

MTX-6/10KV-RMZ1-1C95

1×95

3.4

1.9

30.6

1810

MTX-6/10KV-RMZ1-1C120

1×120

3.4

1.9

32.2

2100

MTX-6/10KV-RMZ1-1C150

1×150

3.4

2.0

34.4

2470

MTX-6/10KV-RMZ1-1C185

1×185

3.4

2.1

36.9

2980

MTX-6/10KV-RMZ1-1C240

1×240

3.4

2.2

39.8

3650

MTX-6/10KV-RMZ1-1C300

1×300

3.4

2.3

42.4

4340

MTX-6/10KV-RMZ1-1C400

1×400

3.4

2.5

46.6

5480

MTX-6/10KV-RMZ1-1C500

1×500

3.4

2.6

49.5

6430

MTX-6/10KV-RMZ1-1C630

1×630

3.4

2.7

53.9

8040

MTX-6/10KV-RMZ1-3C16

3×16

3.4

2.3

42.5

2330

MTX-6/10KV-RMZ1-3C25

3×25

3.4

2.4

45.9

2840

MTX-6/10KV-RMZ1-3C35

3×35

3.4

2.5

48.7

3310

MTX-6/10KV-RMZ1-3C50

3×50

3.4

2.7

51.9

3890

MTX-6/10KV-RMZ1-3C70

3×70

3.4

2.8

56.4

4820

MTX-6/10KV-RMZ1-3C95

3×95

3.4

3.0

60.8

5900

MTX-6/10KV-RMZ1-3C120

3×120

3.4

3.1

64.5

6880

MTX-6/10KV-RMZ1-3C150

3×150

3.4

3.3

68.3

7960

MTX-6/10KV-RMZ1-3C185

3×185

3.4

3.4

72.8

9390

MTX-6/10KV-RMZ1-3C240

3×240

3.4

3.7

79.2

11570

8.7/15kV



Part No.

Construction
No. of cores×Cross
section(mm²)

Nominal Insulation
Thickness mm

Nominal Sheath Thickness mm

Nominal Overall
Diameter mm

Nominal Weight kg/km

MTX-8.7/15KV-RMZ1-1C25

1×25

4.5

1.7

26.2

1020

MTX-8.7/15KV-RMZ1-1C35

1×35

4.5

1.8

27.6

1170

MTX-8.7/15KV-RMZ1-1C50

1×50

4.5

1.8

28.9

1340

MTX-8.7/15KV-RMZ1-1C70

1×70

4.5

1.9

30.9

1630

MTX-8.7/15KV-RMZ1-1C95

1×95

4.5

2.0

33.4

2000

MTX-8.7/15KV-RMZ1-1C120

1×120

4.5

2.0

35.0

2300

MTX-8.7/15KV-RMZ1-1C150

1×150

4.5

2.1

37.3

2730

MTX-8.7/15KV-RMZ1-1C185

1×185

4.5

2.2

39.3

3180

MTX-8.7/15KV-RMZ1-1C240

1×240

4.5

2.3

42.2

3860

MTX-8.7/15KV-RMZ1-1C300

1×300

4.5

2.4

45.2

4600

MTX-8.7/15KV-RMZ1-1C400

1×400

4.5

2.5

48.8

5690

MTX-8.7/15KV-RMZ1-1C500

1×500

4.5

2.7

51.9

6680

MTX-8.7/15KV-RMZ1-1C630

1×630

4.5

2.8

56.7

8360

MTX-8.7/15KV-RMZ1-3C25

3×25

4.5

2.6

51.0

3280

MTX-8.7/15KV-RMZ1-3C35

3×35

4.5

2.7

53.8

3770

MTX-8.7/15KV-RMZ1-3C50

3×50

4.5

2.9

57.4

4430

MTX-8.7/15KV-RMZ1-3C70

3×70

4.5

3.0

61.5

5340

MTX-8.7/15KV-RMZ1-3C95

3×95

4.5

3.2

66.0

6460

MTX-8.7/15KV-RMZ1-3C120

3×120

4.5

3.3

69.6

7460

MTX-8.7/15KV-RMZ1-3C150

3×150

4.5

3.5

73.9

8640

MTX-8.7/15KV-RMZ1-3C185

3×185

4.5

3.6

78.0

10040

MTX-8.7/15KV-RMZ1-3C240

3×240

4.5

3.9

84.4

12270
